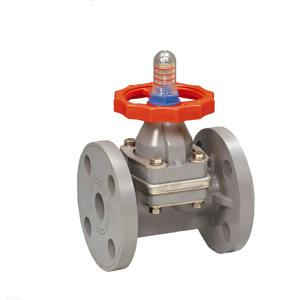

1" Flanged CPVC Hayward® DAB Series Diaphragm Valve w/FPM Diaphragm
$590.93
Skip to product information
1" Flanged CPVC Hayward® DAB Series Diaphragm Valve w/FPM Diaphragm
$590.93
1" Flanged CPVC Hayward® DAB Series Diaphragm Valve w/FPM Diaphragm.
Supplier item: 19573
Sold by: Each
- CPVC body
- PTFE or FPM diaphragm
- Wetted components are the lower half of the valve body & the diaphragm
- Large, sure-grip handwheel makes it easy to open or close the valve
- The beacon-type indicator provides a highly visible position indication
- Stroke adjustment allows precise "tweaking" of diaphragm movement for exact flow control
- Pressure rating: 150 psi @ 70°F, non-shock
- Temperature rating: 190°F
Need help selecting this product?
Contact us with the product name, required specifications and quantity.
