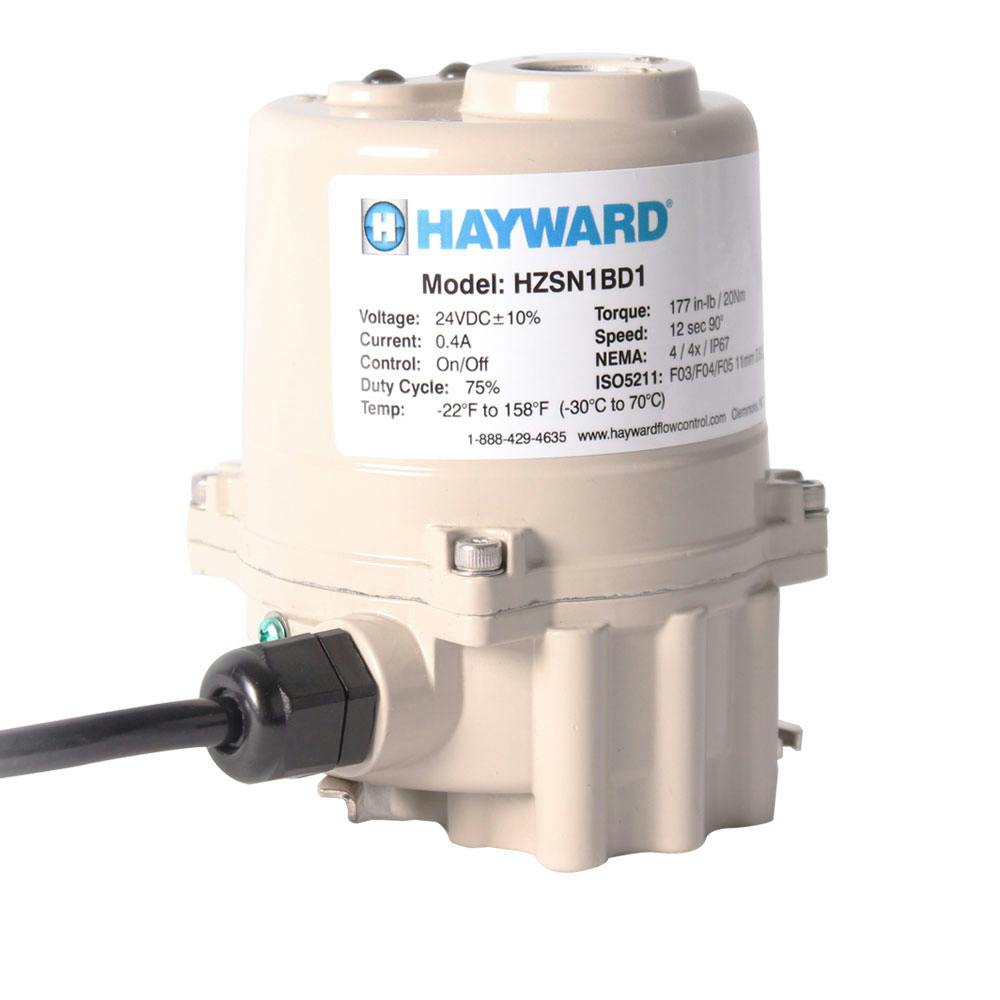

Hayward® HZSN1 Series Quarter Turn Mini Electric Actuator with On/Off Control & 24 VAC/VDC or 85-265 VAC Power Supply
$758.08
Skip to product information
Hayward® HZSN1 Series Quarter Turn Mini Electric Actuator with On/Off Control & 24 VAC/VDC or 85-265 VAC Power Supply
$758.08
Hayward® HZSN1 Series Quarter Turn Mini Electric Actuator with On/Off Control & 24 VAC/VDC or 85-265 VAC Power Supply.
Supplier item: 21010
Sold by: Each
- Powder-coated aluminum alloy housing
- On/off or proportional control options
- Torque: 266 in. lbs.
- Manual override lever; 8mm access shaft at the bottom of the actuator housing
- PG6 EMT entry port with sealed cable gland; 39" cable included
- NEMA 4X/IP67 compliant; ISO5211 compliant with an 11mm double square female drive
- Temperature range: -22°F to 158°F
- Actuators fit TBH, TW & LA Series ball valves in 1/2" to 2"
- Valves sold separately
