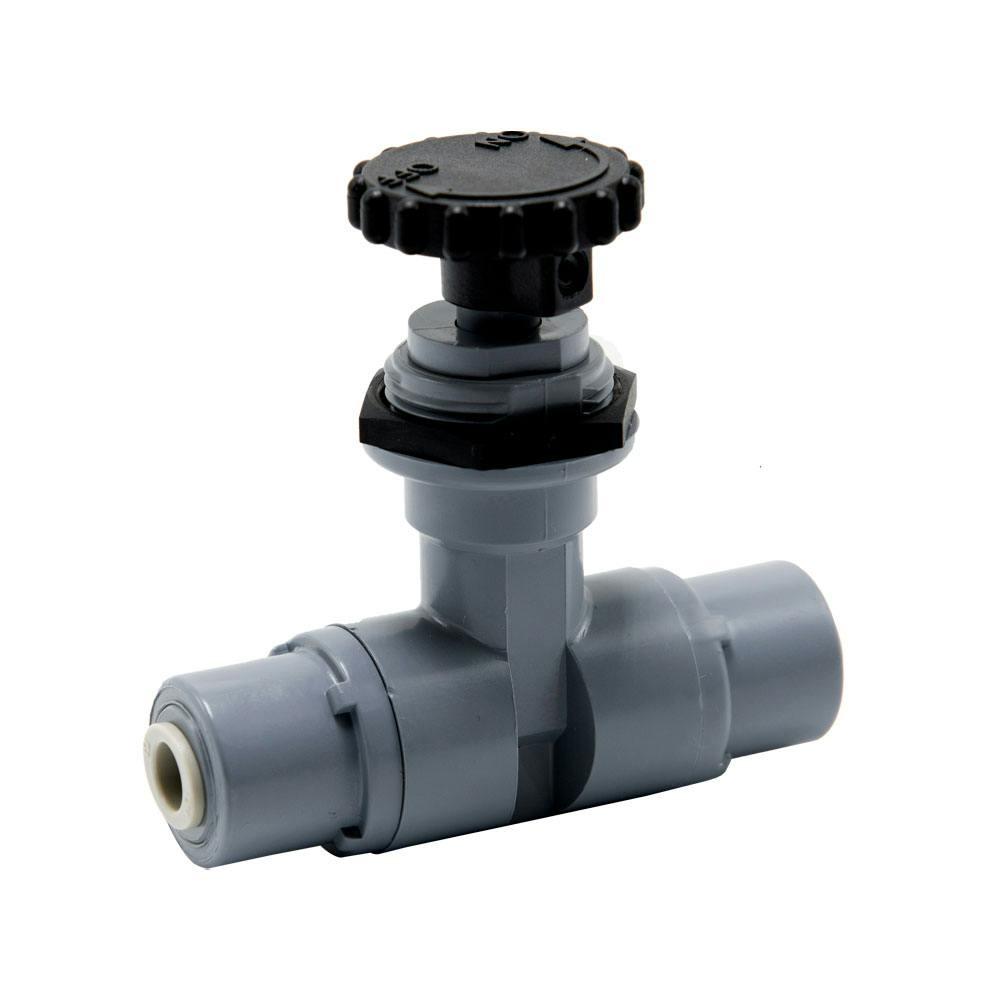

1/4" OD Push-to-Connect x 1/4" OD Gray PVC Push-to-Connect Series 586 Needle Valve with PTFE Seal
$16.03
Skip to product information
1/4" OD Push-to-Connect x 1/4" OD Gray PVC Push-to-Connect Series 586 Needle Valve with PTFE Seal
$16.03
1/4" OD Push-to-Connect x 1/4" OD Gray PVC Push-to-Connect Series 586 Needle Valve with PTFE Seal.
Supplier item: 22677
Sold by: Each
- Gray PVC, white polypropylene, or black Kynar® PVDF
- EPDM stem seal except 22677 which has PTFE seal
- Black nylon knob; One black nylon hex nut for panel mount applications
- Supports flow & pressure in either direction
- Maximum panel thickness: 0.125"
- Panel mount hole size: 0.875"; Panel mount threads: 7/8-20
- Maximum flow diameter: 0.175"
- 2.5° tip except 22299 which has a 45° tip (all are 6 turns)
- Maximum pressure: 125 psi
- Maximum temperature: 140°F
