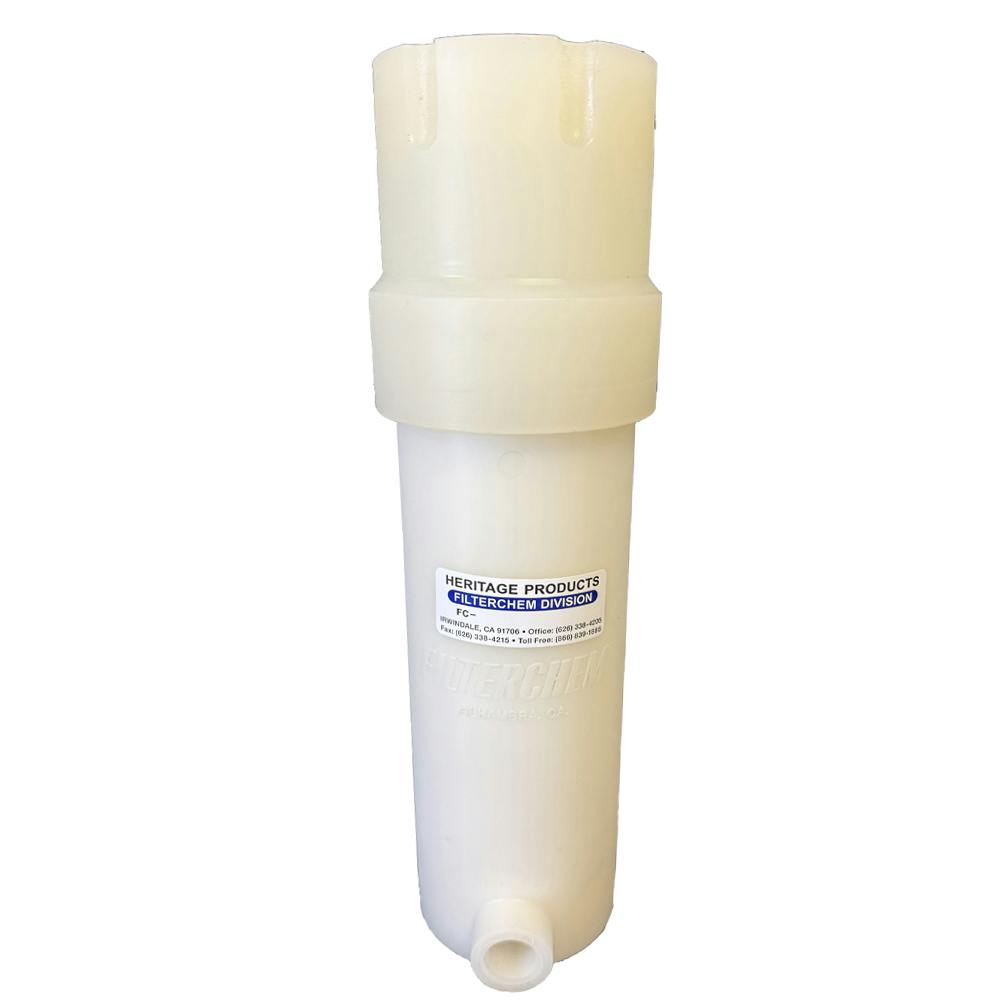

10" PVDF Single Tube Filter Chamber

10" PVDF Single Tube Filter Chamber.

Supplier item: 27096
Sold by: Each

• PVC, CPVC, Polypropylene, or PVDF; FKM O-Ring
• ACME threads provide ease of element (filter) changes
• Inlet/Outlet ports located at the base allowing for easy, mess-free filter changes
• Chambers can be mounted in parallel for higher flow rates, or in a series for multi-step filtration
• Can be drained without having to remove cap
• Spring-load top eliminates filter bypass
• Working temp.: 32° to 140°F (PVC), 32° to 200°F (CPVC), 14° to 180°F (PP), -20° to 212°F (PVDF)
• Flow capacity for all materials: 2.5 to 5.4 GPM (10"), 5 to 9 GPM (20"), 7.5 to 12 GPM (30")
