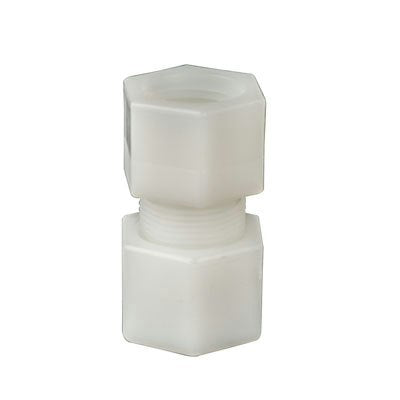

5/16" OD Compression x 1/4" FNPT Nylon JACO Female Connector
$0.93
Skip to product information
5/16" OD Compression x 1/4" FNPT Nylon JACO Female Connector
$0.93
5/16" OD Compression x 1/4" FNPT Nylon JACO Female Connector.
Supplier item: 61019
Sold by: Each
- Nylon body; Ferrule nut
- Resistant to organic solvents, oils & gasoline
- Resistant to impact & weather
- Dimensions: 1-7/32" L
- Hex size: 3/4"
- Ferrule nut thread: 1/2-20
- Thru hole: 0.232"
- Max. working pressure: 50 psi
- Temperature range: -40°F to 250°F
- FDA-compliant resin/materials; NSF/ANSI/CAN listed
Specifications
| Material | Nylon |
|---|---|
| Size | 5/16" x 1/4" |
| Configuration | Compression x FNPT |
| Weight | 0.02 lbs |
