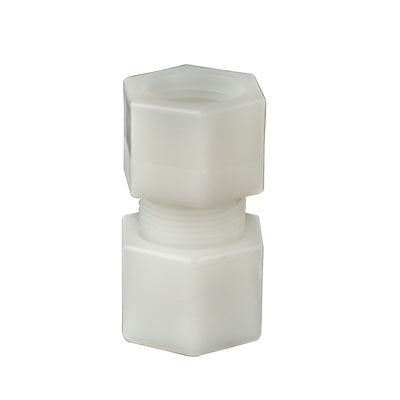

5/16" OD Compression x 1/4" FNPT Polypropylene JACO Female Connector
$0.93
5/16" OD Compression x 1/4" FNPT Polypropylene JACO Female Connector.
Supplier item: 61083
Sold by: Each
- Polypropylene body; Ferrule nut
- Good chemical resistance
- Dimensions: 1-7/32" L
- Hex size: 3/4"
- Ferrule nut thread: 1/2-20
- Thru hole: 0.232"
- Max. working pressure: 50 psi
- Temperature range: -30°F to 225°F
- NSF/ANSI/CAN 14 & 61 listed
- FDA-compliant resin/materials
Specifications
| Material | Polypropylene |
|---|---|
| Size | 5/16" x 1/4" |
| Configuration | Compression x FNPT |
| Weight | 0.017 lbs |
