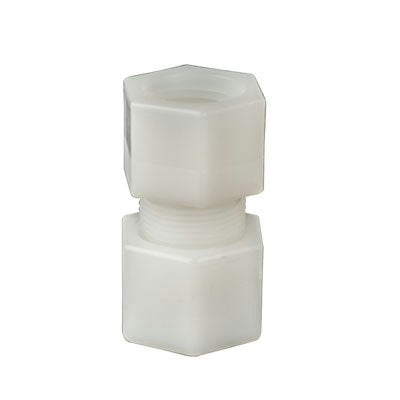

1/4" OD Compression x 1/4" FNPT Kynar® PVDF JACO Female Connector with Plastic Gripper
$3.69
Skip to product information
1/4" OD Compression x 1/4" FNPT Kynar® PVDF JACO Female Connector with Plastic Gripper
$3.69
1/4" OD Compression x 1/4" FNPT Kynar® PVDF JACO Female Connector with Plastic Gripper.
Supplier item: 61264
Sold by: Each
- Kynar® PVDF body; PVDF gripper
- Use Kynar® fittings with Kynar®, PTFE, FEP & PFA tubing
- Dimensions: 1-3/32" L
- Hex size: 51/64"
- Nut thread: 7/16-20
- Thru hole: 0.170"
- Max. working pressure: 220 psi
- Temperature range: -80°F to 250°F
- FDA-compliant resin/materials; NSF/ANSI/CAN 51 listed
Specifications
| Material | PVDF |
|---|---|
| Size | 1/4" x 1/4" |
| Configuration | Compression x FNPT |
| Weight | 0.028 lbs |
Need help selecting this product?
Contact us with the product name, required specifications and quantity.
