1/2" OD Compression x 1/2" FNPT Kynar® PVDF JACO Female Connector with Plastic Gripper
$6.50

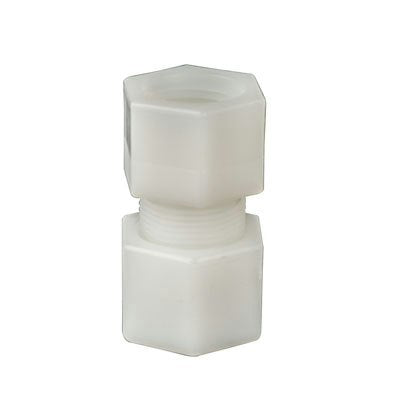

1/2" OD Compression x 1/2" FNPT Kynar® PVDF JACO Female Connector with Plastic Gripper.
Supplier item: 61270
Sold by: Each
- Kynar® PVDF body; PVDF gripper
- Use Kynar® fittings with Kynar®, PTFE, FEP & PFA tubing
- Dimensions: 1-9/32" L
- Hex size: 1-1/16"
- Nut thread: 3/4-20
- Thru hole: 0.375"
- Max. working pressure: 220 psi
- Temperature range: -80°F to 250°F
- FDA-compliant resin/materials; NSF/ANSI/CAN 51 listed
Specifications
| Material | PVDF |
|---|---|
| Size | 1/2" x 1/2" |
| Configuration | Compression x FNPT |
| Weight | 0.05 lbs |
