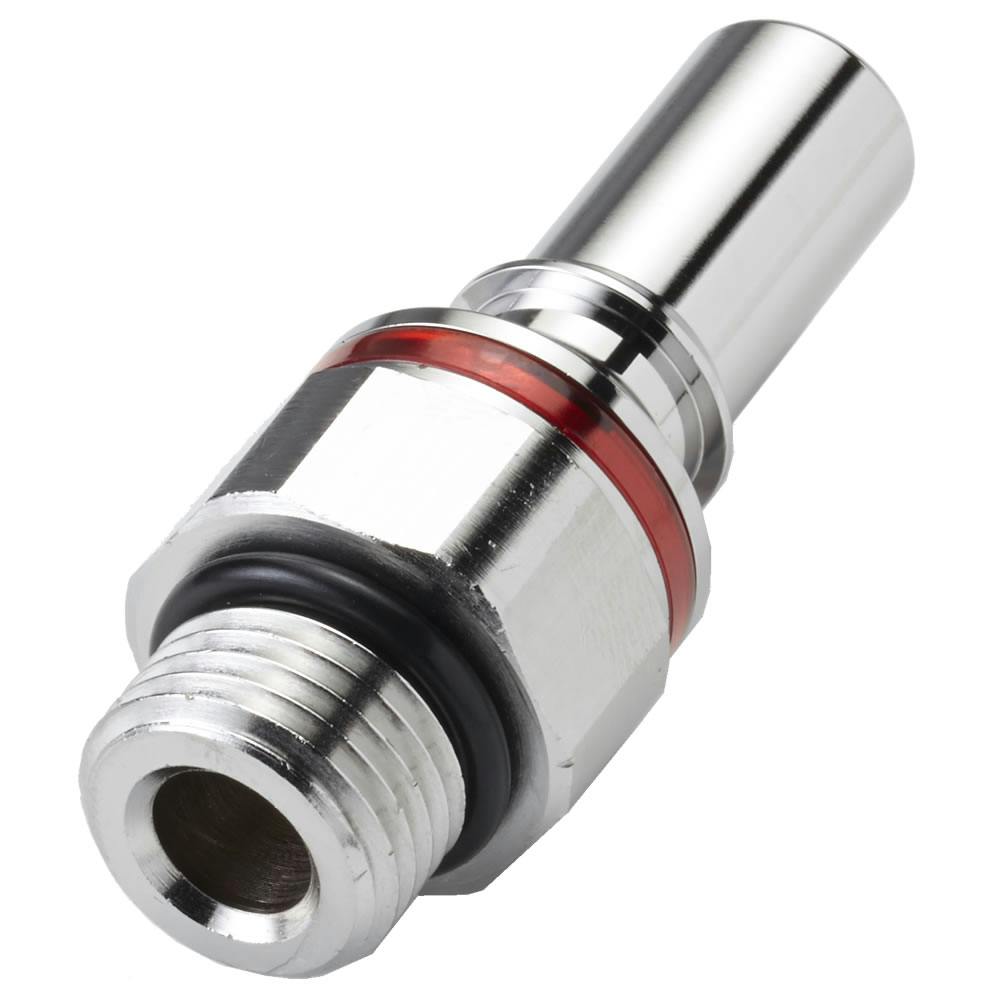

3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately)
$51.26
Skip to product information
3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately)
$51.26
3/8 SAE-06 LQ4 Chrome-Plated Brass Valved Insert - Red (Body Sold Separately).
Supplier item: 62645
Sold by: Each
- Chrome-plated brass main housing
- Polysulfone valve & thumb latch
- SS valve spring & external spring
- EPDM seals
- Lubricated with Krytox® PFPE
- Spillage per disconnect: 0.025 cc at 0 psi, 0.055 cc at 120 psi
- Inclusion: 0.025 cc per connect
- Maximum flow at disconnect: 3 gallons/minute
- Pressure rating: vacuum to 120 psi, 8.3 bar
- Temperature range: 0°F to 240°F
