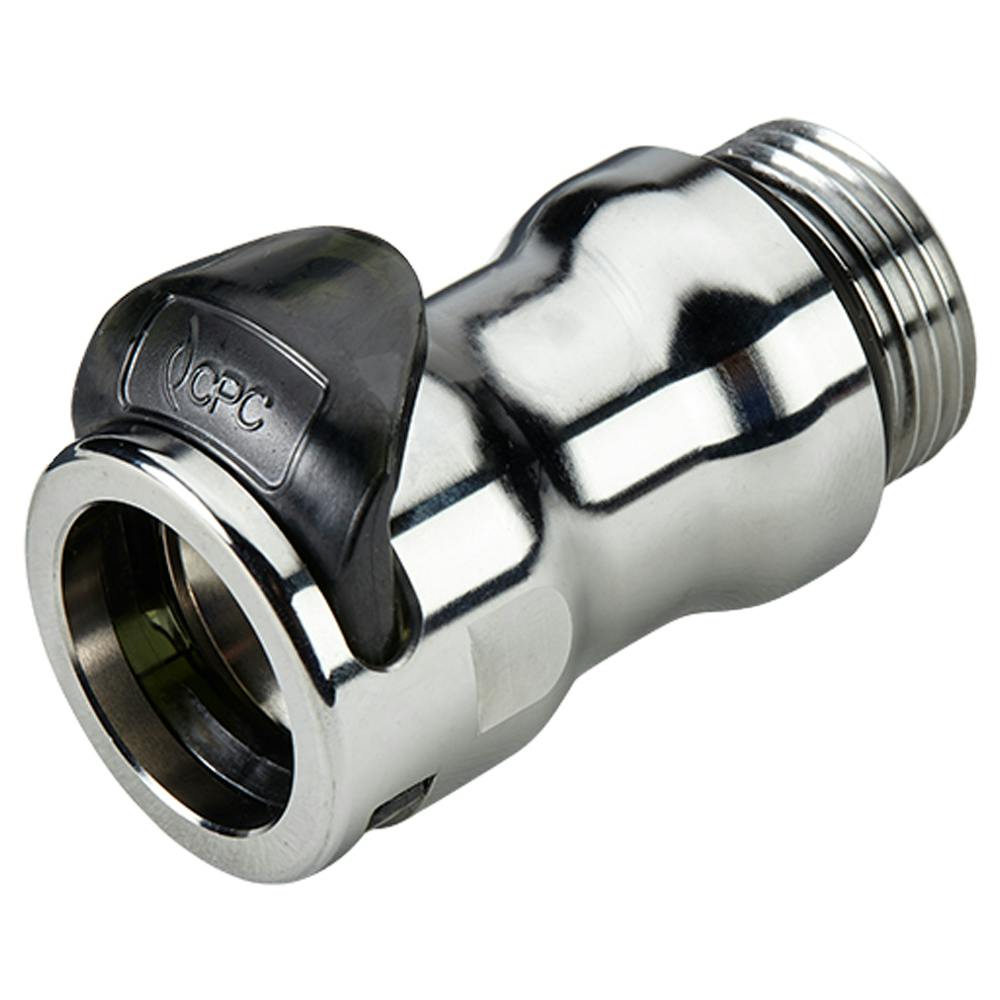

G 3/4 BSPP LQ8 Chrome-plated Brass Valve Body (Insert Sold Separately)
$176.18
Skip to product information
G 3/4 BSPP LQ8 Chrome-plated Brass Valve Body (Insert Sold Separately)
$176.18
G 3/4 BSPP LQ8 Chrome-plated Brass Valve Body (Insert Sold Separately).
Supplier item: 63472
Sold by: Each
- Nickel-chrome plated brass main housing
- Polyphenylsulfone valve & thumb latch
- Stainless steel valve spring & external spring
- EPDM seals
- Lubricated with Krytox® PFPE
- Spillage per disconnect: 0.02cc at 0 psi, 0.07cc at 60 psi
- Air inclusion: 0.5cc per connect & flow coefficient: Cv ~ 6
- Pressure rating: 120 psi, 8.3 bar
- Temperature range: 0°F to 240°F (operating) & -40°F to 240°F (storage & shipping)
- Meets RoHS & REACH standards
