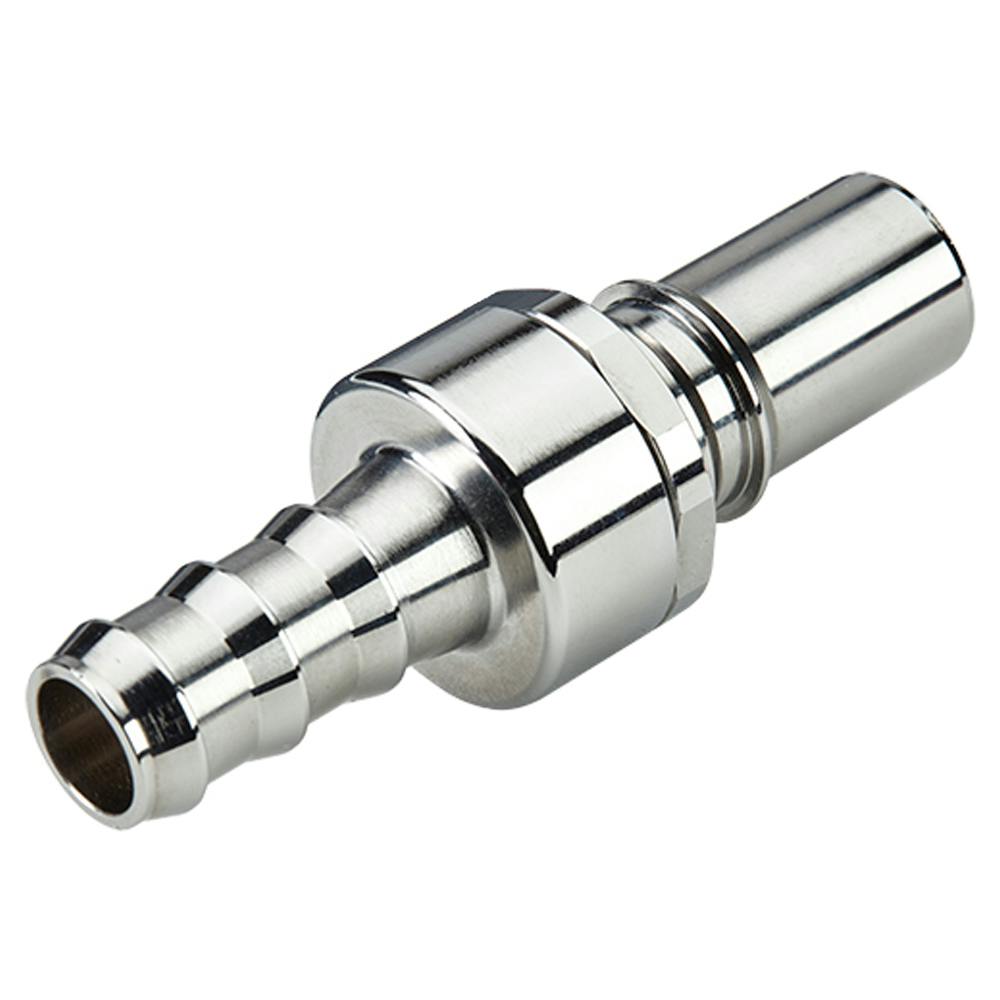

5/8" In-Line Hose Barb LQ8 Chrome-plated Brass Valve Insert (Body Sold Separately)
$133.21
Skip to product information
5/8" In-Line Hose Barb LQ8 Chrome-plated Brass Valve Insert (Body Sold Separately)
$133.21
5/8" In-Line Hose Barb LQ8 Chrome-plated Brass Valve Insert (Body Sold Separately).
Supplier item: 63473
Sold by: Each
- Nickel-chrome plated brass main housing
- Polyphenylsulfone valve & thumb latch
- Stainless steel valve spring & external spring
- EPDM seals
- Lubricated with Krytox® PFPE
- Spillage per disconnect: 0.02cc at 0 psi, 0.07cc at 60 psi
- Air inclusion: 0.5cc per connect & flow coefficient: Cv ~ 6
- Pressure rating: 120 psi, 8.3 bar
- Temperature range: 0°F to 240°F (operating) & -40°F to 240°F (storage & shipping)
- Meets RoHS & REACH standards
