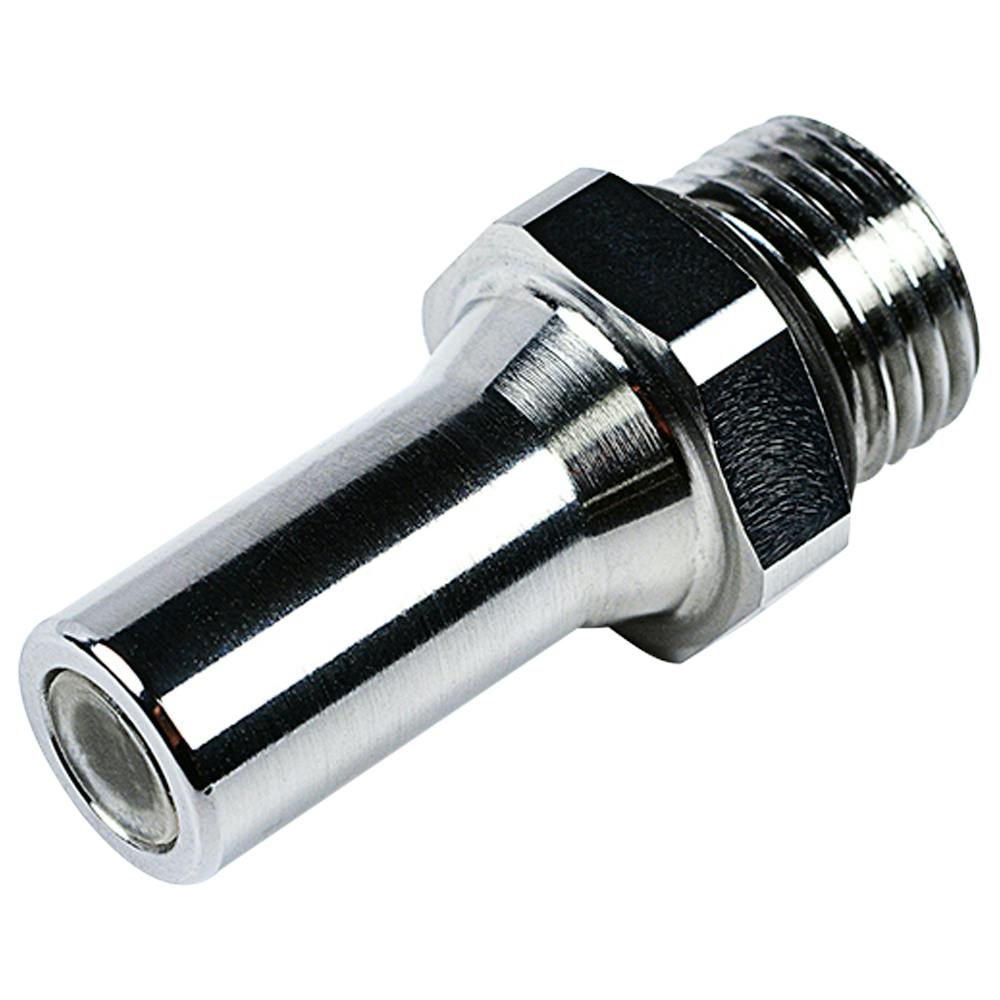

SAE-6 BLQ4 Chrome-plated Brass Valve Insert (Body Sold Separately)
$46.40
SAE-6 BLQ4 Chrome-plated Brass Valve Insert (Body Sold Separately).
Supplier item: 63491
Sold by: Each
- Chrome-plated brass main housing & polysulfone valve
- Stainless steel valve spring & external spring
- EPDM seals
- Lubricated with Krytox® PFPE
- Max. flow at disconnect: 3.0 gal/min, 11.3L/min
- Spillage per disconnect: < 0.025cc at 0 psi, < 0.055cc at 120 psi
- Inclusion: < 0.025cc per connect
- Coupling must be within 1/8" of fully engaged to achieve maximum flow
- Pressure rating: 120 psi, 8.3 bar
- Temperature range: 0°F to 240°F
