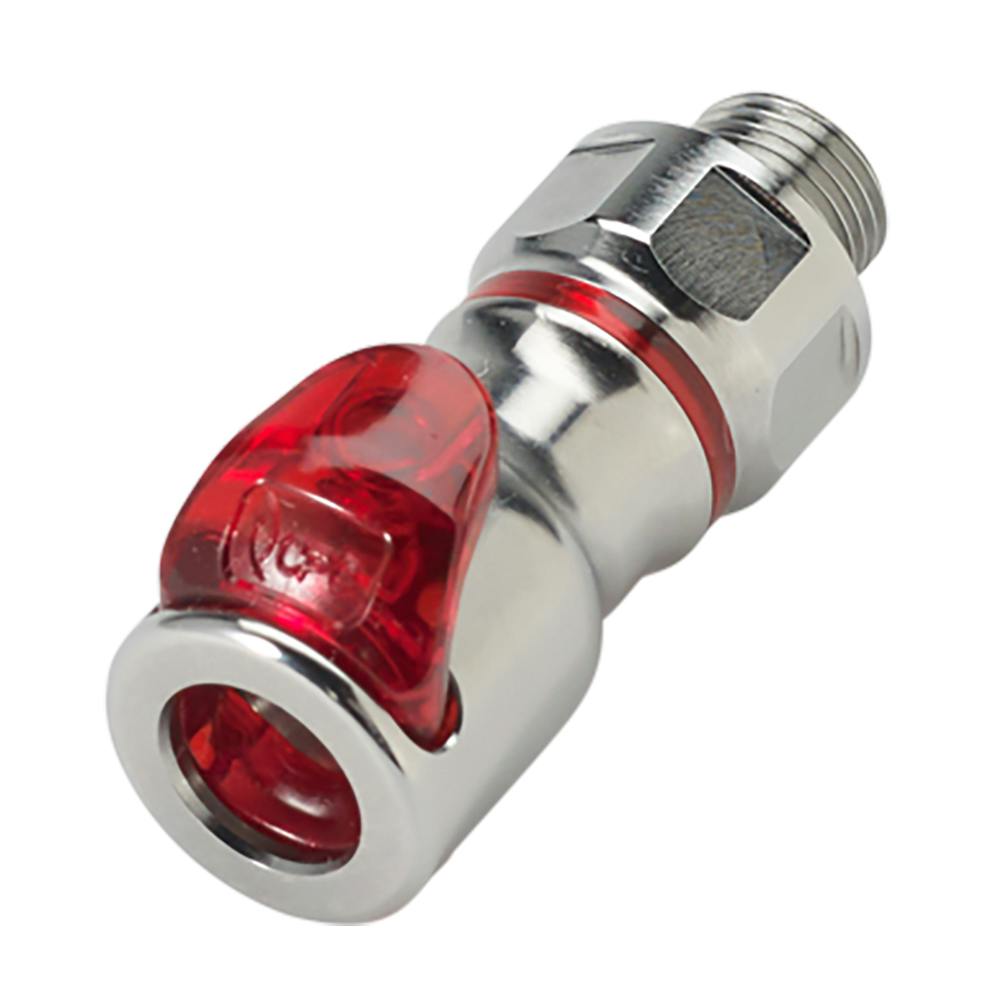

G 1/8 BSPP LQ2 Chrome-Plated Brass Locking Valved Body - Red (Insert Sold Separately)
$65.74
G 1/8 BSPP LQ2 Chrome-Plated Brass Locking Valved Body - Red (Insert Sold Separately).
Supplier item: 63496
Sold by: Each
- Chrome-plated brass main housing
- Polysulfone valve & thumb latch
- SS valve spring & external spring
- EPDM seals
- Lubricated with Krytox® PFPE
- Spillage per disconnect: < 0.015 cc at 0 psi, < 0.063 cc at 200 psi
- Inclusion: < 0.063 cc per connect
- Maximum flow at disconnect: 1 gallon/minute @ 0 - 100 psi & 1/4 gallons/minute @ 101 - 200 psi
- Pressure rating: vacuum to 200 psi, 13.8 bar
- Temperature range: 0°F to 240°F
