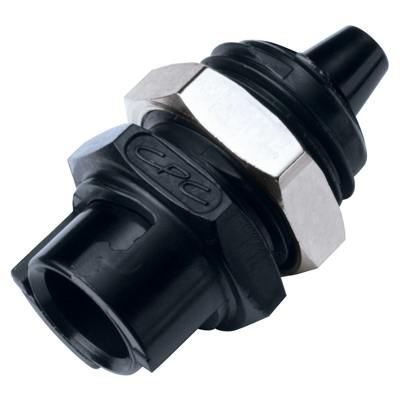

1/8" Hose Barb SMC Series Subminiature Acetal Black Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)
$5.00
Skip to product information
1/8" Hose Barb SMC Series Subminiature Acetal Black Panel Mount Coupling Body - Straight Thru (Insert Sold Separately)
$5.00
1/8" Hose Barb SMC Series Subminiature Acetal Black Panel Mount Coupling Body - Straight Thru (Insert Sold Separately).
Supplier item: 65221
Sold by: Each
- ABS, acetal & polypropylene main components
- Acetal locking sleeves & valves
- 316 SS valve spring
- Buna-N O-rings on ABS & acetal connectors
- EPDM O-rings on polypropylene connectors
- Free coupling rotation eliminates kinked tubing
- Pressure rating: vacuum to 100 psi, 6.9 bar except 65246 & 65247 (120 psi, 8.3 bar)
- Acetal temperature range: -40°F to 180°F (-40°C to 82°C)
- Polypropylene temperature range: 32°F to 180°F (0°C to 82°C)
- ABS temperature range: -40°F to 160°F (-40°C to 71°C)
