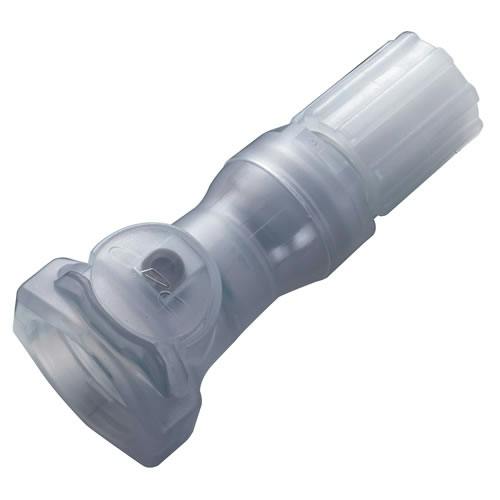

1/4" Flare Compression CQH Series Polypropylene In-Line Coupling Body - Shutoff (Insert Sold Separately)
$139.64
1/4" Flare Compression CQH Series Polypropylene In-Line Coupling Body - Shutoff (Insert Sold Separately).
Supplier item: 67380
Sold by: Each
- Natural, virgin polypropylene
- Black FKM valve O-rings
- Black Simriz® FFKM Perfluoroelastomer external insert O-ring
- PEEK® valve (wetted) & thumb latch spring
- PFA flare nuts (1/4" sizes) or PVDF flare nuts (all other sizes)
- Pressure rating: 0 to 80 psig (0 to 5.5 bar)
- Temperature range: 32°F to 225°F (0°C to 107°C)
- Spillage/air inclusion: ~1.5 cc (mL) per disconnect (reconnect)
- High flow in a compact package
- Can disconnect under pressure for quick servicing & reduced injury risk
