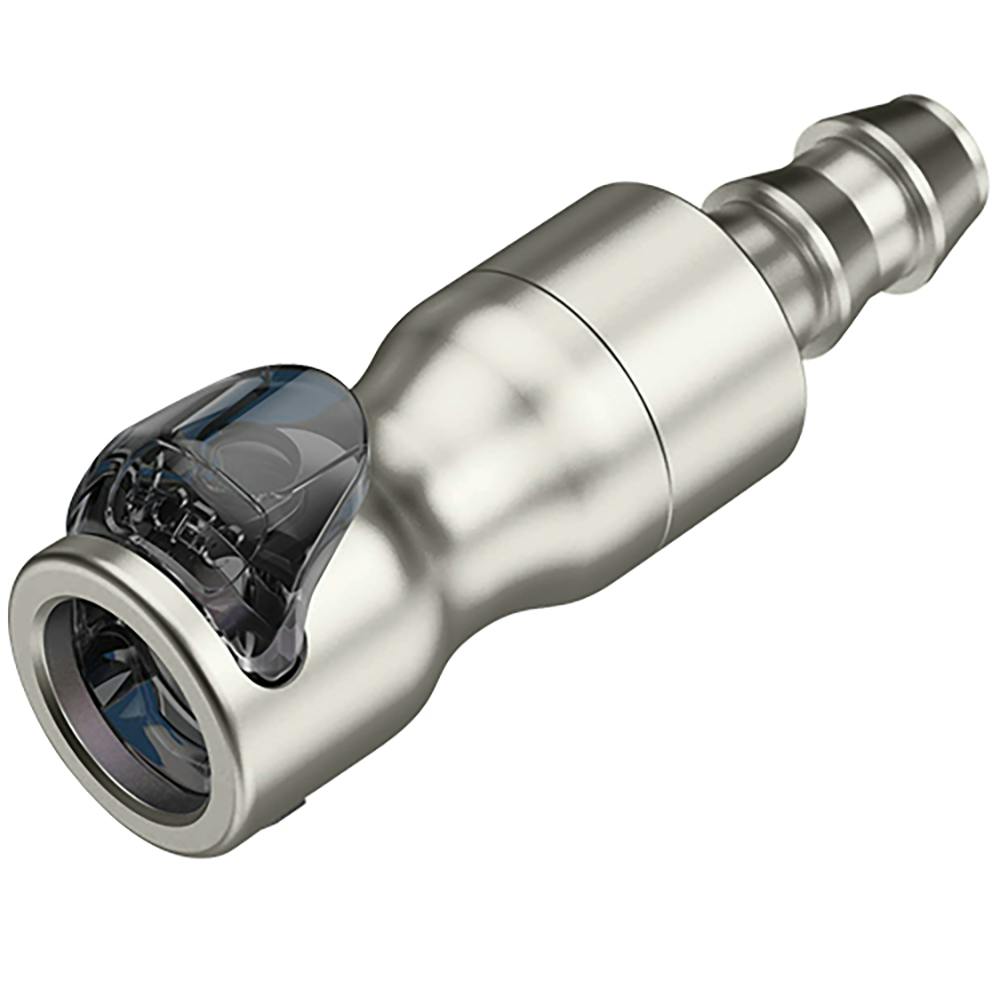

3/8" Hose Barb LQ4S Stainless Steel Locking Valved Body - Black (Insert Sold Separately)
$146.62
Skip to product information
3/8" Hose Barb LQ4S Stainless Steel Locking Valved Body - Black (Insert Sold Separately)
$146.62
3/8" Hose Barb LQ4S Stainless Steel Locking Valved Body - Black (Insert Sold Separately).
Supplier item: 90393
Sold by: Each
- Type 303/304 stainless steel main components
- Polyphenylsulfone valve & thumb latch
- SS valve spring & external spring; EPDM seals
- Lubricated with Krytox® PFPE
- Spillage per disconnect: 0.025cc at 0 psi, 0.055cc at 120 psi
- Inclusion: 0.025cc per connect
- Maximum flow at disconnect: 3 gallons/minute at 1 to 120 psi
- Pressure rating: vacuum to 120 psi, 8.3 bar
- Temperature range: 0°F to 240°F (Operating) & -40°F to 167°F (Storage)
- RoHS & REACH compliant
