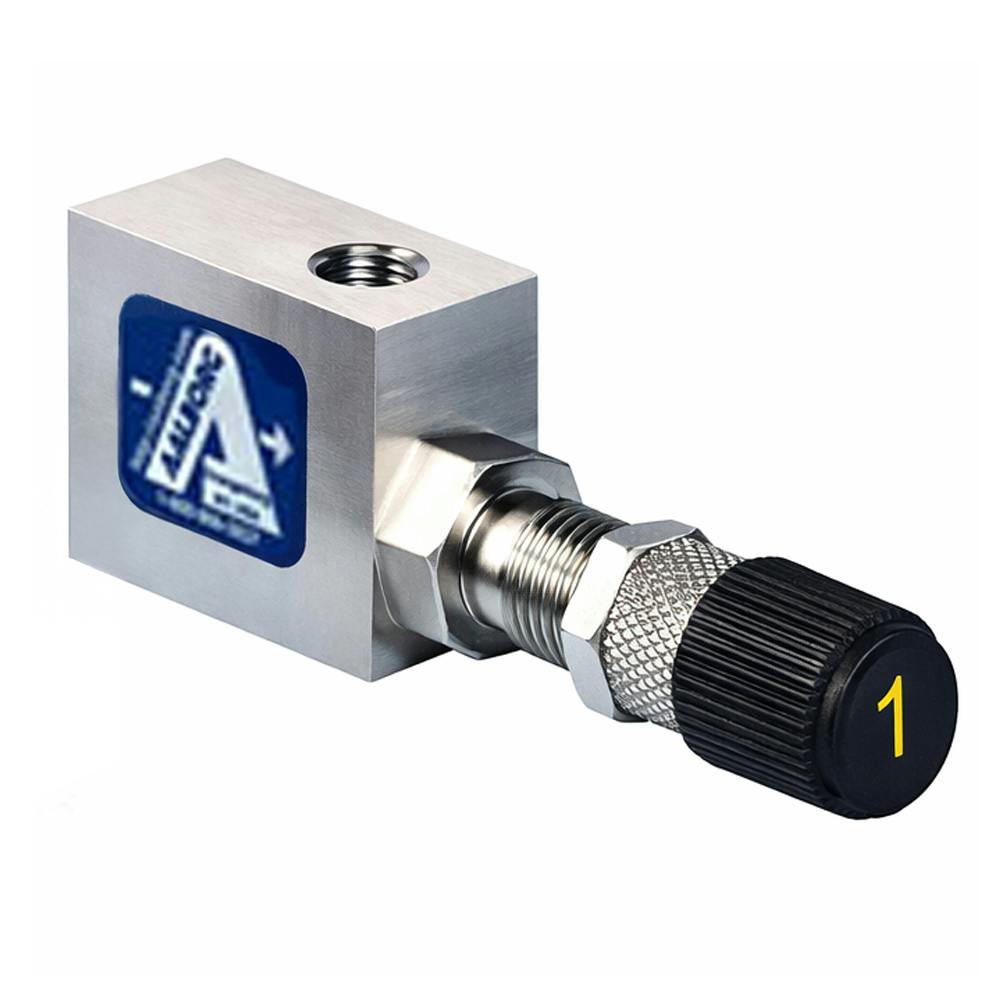

1/8" FNPT x 1/8" FNPT Chrome-Plated Brass 90° MFV™ Series Metering Barstock Needle Valve - 0.016 Cv
$82.46
Skip to product information
1/8" FNPT x 1/8" FNPT Chrome-Plated Brass 90° MFV™ Series Metering Barstock Needle Valve - 0.016 Cv
$82.46
1/8" FNPT x 1/8" FNPT Chrome-Plated Brass 90° MFV™ Series Metering Barstock Needle Valve - 0.016 Cv.
Supplier item: 98529
Sold by: Each
- Chrome-plated brass or 316 stainless steel body
- Buna-N (brass valves) or Viton™ (stainless steel valves) O-rings
- 316 stainless steel valve needle; 316 stainless steel orifice with PTFE or PCTFE liner
- Bubble-tight shutoff
- Non-rising valve stem; Virtually free of hysteresis (see-sawing)
- Sixteen turns to full open
- Max. working pressure: 500 psi
- Max. temperature: 180°F (brass) or 250°F (stainless steel)
Need help selecting this product?
Contact us with the product name, required specifications and quantity.
