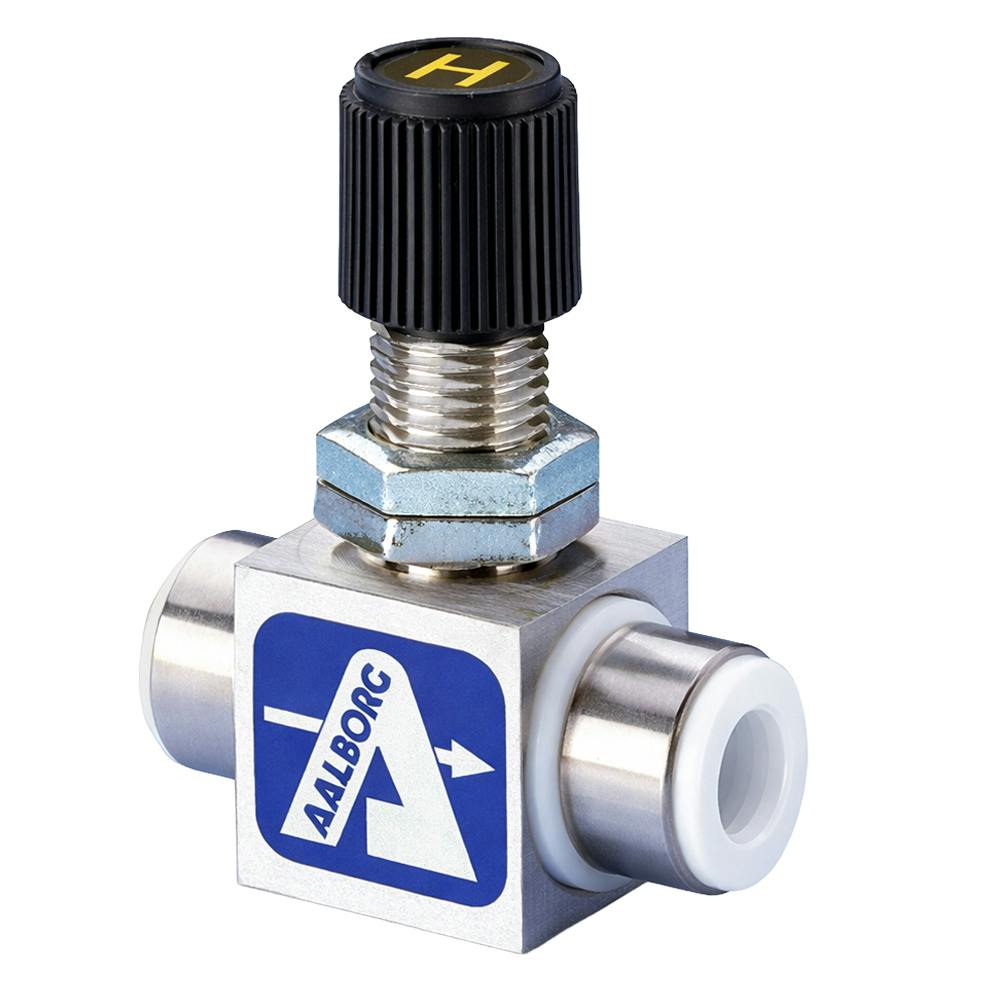

1/4" Compression x 1/4" Compression Straight CVT™ Series Utility PTFE Needle Valve with Stainless Steel Shell - 0.25 Cv
$245.89
1/4" Compression x 1/4" Compression Straight CVT™ Series Utility PTFE Needle Valve with Stainless Steel Shell - 0.25 Cv.
Supplier item: 98557
Sold by: Each
- PTFE body & O-ring; PEEK spindle; Phenolic adjusting knob
- Anodized aluminum or 316 stainless steel outer shell
- Plated brass (aluminum shell) or 316 stainless steel (stainless steel shell) bushing
- Wetted inner parts are PTFE & PEEK only; Non-wetted structurally rigid metal shell
- Only 7 total components
- Adjustable O-ring compression without disassembly
- Orifice: 0.125"
- Max. working pressure: 75 psi
- Max. temperature: 150°F
